CPS610 Durable SOIC Package Double Vertical Air Nozzle Differential Pressure Sensor

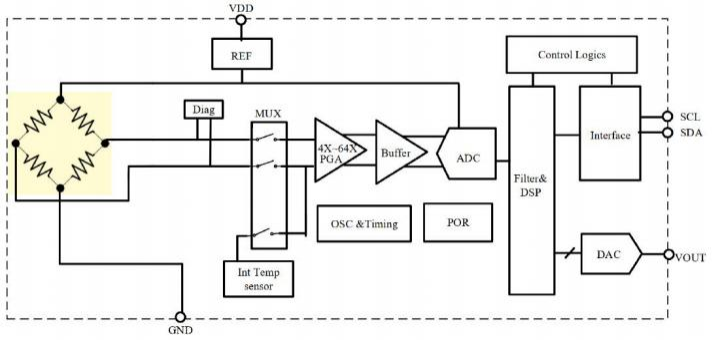

System Function Block Diagram

CPS610 Pressure Sensor Overview

The CPS610 Pressure Sensor is an ultra-small, high-precision semiconductor sensor designed for differential pressure measurement. It is suitable for various fields, including medical, industrial control, and white goods. The sensor features a JEDC standard SOIC-16 package with vertical double air nozzles and barbs for easy installation and use. This pressure sensor includes an I2C interface and uses a unique algorithm to achieve multi-order temperature compensation. It is factory calibrated, and both the pressure range and temperature range can be customized. The sensor complies with RoHS standards, making it convenient for flexible client use.

Key Features

• Miniaturized Design: Utilizes MEMS technology for a compact and efficient form factor.
• Customizable Pressure Range: Offers customizable differential pressure and gauge pressure options, including 0.2 kPa, 0.5 kPa, 2.5 kPa, and 10 kPa.
• High-Speed Digital Output: Provides a 24-bit I2C digital output for high-speed and accurate data transmission.
• High Precision: Ensures accurate pressure monitoring for critical applications.
• Durable Packaging: The SOIC package with double vertical air nozzles and barbs facilitates easy and secure installation.

Applications

1. Medical Monitoring:Respiratory systemsCPAP (Continuous Positive Airway Pressure) devices Fire safety systems in medical beds
2. Industrial Control:Firefighting residual pressure monitoring HVAC (Heating, Ventilation, and Air Conditioning) systems VAV (Variable Air Volume) systemsPressure transmitters

5.5V Differential Pressure Sensor

3V Differential Pressure Sensor

24Bits dpf sensor

CPS610 Durable SOIC Package Double Vertical Air Nozzle Differential Pressure Sensor Images
